- Toepassing: voor meeraderige, fijnaderige en verdichte meer-en fijnaderige geleiders en voor massieve geleiders van 1-16 mm2
- Materiaal: DIN EN 13600 Koper (Cu-HCP),
- Afwerking: galvanisch vertind
- Doorsnede: 1,0-300 mm²

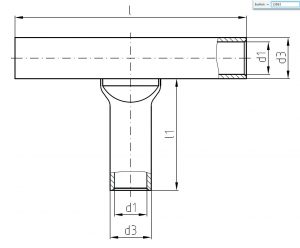

| Doorsnede mm² | Artikelnummer | d1 | d3 | l | l1 | Gewicht (kg/100) | VPE |
|---|---|---|---|---|---|---|---|
| 1,0-1,5 | ICR1T | 1.9 | 3.9 | 30 | 16 | 0.36 | 25 |
| 2.5 | ICR2T | 2.4 | 4.4 | 30 | 16 | 0.45 | 25 |
| 4 | ICR4T | 3 | 5 | 35 | 16.5 | 0.57 | 25 |
| 6 | ICR6T | 3.5 | 6.5 | 35 | 17 | 1.08 | 25 |
| 10 | ICR10T | 4.5 | 7 | 45 | 25 | 1.4 | 25 |
| 16 | ICR16T | 5.5 | 8.5 | 50 | 26 | 2.3 | 25 |
| 25 | ICR25T | 7 | 10 | 50 | 27 | 2.4 | 25 |
| 35 | ICR35T | 8.5 | 12 | 60 | 31 | 4.5 | 10 |
| 50 | ICR50T | 10 | 14 | 72 | 35 | 7.2 | 10 |
| 70 | ICR70T | 12 | 16.5 | 77 | 37 | 10.35 | 10 |
| 95 | ICR95T | 13.5 | 18 | 88 | 45 | 12.7 | 10 |
| 120 | ICR120T | 15 | 20 | 106 | 53 | 17.8 | 10 |
| 150 | ICR150T | 16.8 | 21.3 | 120 | 58 | 23.45 | 5 |
| 185 | ICR185T | 19 | 24 | 110 | 42 | 30.52 | 5 |
| 240 | ICR240T | 21 | 26 | 135 | 55 | 33.94 | 5 |
| 300 | ICR300T | 24 | 30 | 140 | 55 | 47.7 | 5 |
