- Toepassing: voor meeraderige, fijnaderige en verdichte meer-en fijnaderige geleiders en voor massieve geleiders van 0.75-16 mm2
- Materiaal: DIN EN 13600 Koper (Cu-HCP),
- Afwerking: galvanisch vertind
- Doorsnede: 0,5-400 mm²

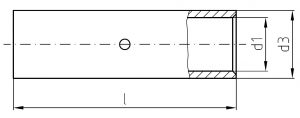

| Doorsnede mm² | Artikelnummer | d1 | d3 | l | Gewicht (kg/100) | VPE |
|---|---|---|---|---|---|---|
| 0,5-0,75 | ICR075V | 1.4 | 3 | 15 | 0.08 | 50 |
| 1,0-1,5 | ICR1V | 1.9 | 3.9 | 15 | 0.12 | 50 |
| 2.5 | ICR2V | 2.4 | 4.4 | 16 | 0.15 | 50 |
| 4 | ICR4V | 3 | 5 | 19 | 0.21 | 50 |
| 6 | ICR6V | 3.5 | 6.5 | 25 | 0.52 | 50 |
| 10 | ICR10V | 4.5 | 7 | 30 | 0.5 | 50 |
| 16 | ICR16V | 5.5 | 8.5 | 35 | 1 | 50 |
| 25 | ICR25V | 7 | 10 | 40 | 1.41 | 50 |
| 35 | ICR35V | 8.5 | 12 | 45 | 2.17 | 25 |
| 50 | ICR50V | 10 | 14 | 50 | 3.32 | 25 |
| 70 | ICR70V | 12 | 16.5 | 55 | 4.91 | 25 |
| 95 | ICR95V | 13.5 | 18 | 60 | 6.09 | 25 |
| 120 | ICR120V | 15 | 20 | 65 | 7.88 | 25 |
| 150 | ICR150V | 16.8 | 21.3 | 70 | 8.68 | 10 |
| 185 | ICR185V | 19 | 24 | 75 | 11.63 | 10 |
| 240 | ICR240V | 21 | 26 | 85 | 14.79 | 10 |
| 300 | ICR300V | 24 | 30 | 100 | 22.4 | 5 |
| 400 | ICR400V | 27.5 | 33.5 | 100 | 26.17 | 5 |
