- Toepassing: voor één-, meer-, fijn- en extra fijnaderige geleiders
- Materiaal: DIN EN 13600 Koper (Cu-HCP)
- Afwerking: galvanisch vertind
- Optie blank koper: artikeltoevoeging “BK”
- Doorsnede: 10-300 mm2

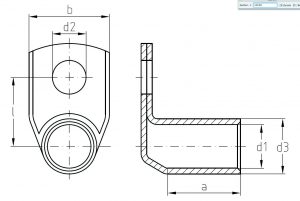

- Buismaten conform DIN 46235
| Doorsnede mm² | Gatmaat | Standaard vertind Artikelnummer | Ref.nr. Persing | d1 | d3 | d2 | b | l | a | Gewicht (kg/100) | VPE | Optie blank Artikelnummer |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10 | 6 | ICD10690 | 6 | 4.4 | 6 | 6.4 | 10 | 13 | 10 | 0.35 | 25 | ICD10690BK |
| 8 | ICD10890 | 8.4 | 13 | 15 | 0.5 | 25 | ICD10890BK | |||||
| 16 | 6 | ICD16690 | 8 | 5.5 | 8.5 | 6.4 | 13 | 14.3 | 20 | 1.27 | 25 | ICD16690BK |
| 8 | ICD16890 | 8.4 | 13 | 16.3 | 1.3 | 25 | ICD16890BK | |||||
| 10 | ICD161090 | 10.5 | 16.5 | 18.3 | 1.41 | 25 | ICD161090BK | |||||
| 12 | ICD161290 | 13 | 19 | 19.3 | 1.38 | 25 | ICD161290BK | |||||
| 25 | 6 | ICD25690 | 10 | 7 | 10 | 6.4 | 15 | 15.5 | 20 | 1.68 | 25 | ICD25690BK |
| 8 | ICD25890 | 8.4 | 16 | 17.5 | 1.76 | 25 | ICD25890BK | |||||
| 10 | ICD251090 | 10.5 | 16 | 19.5 | 1.84 | 25 | ICD251090BK | |||||
| 12 | ICD251290 | 13 | 19 | 20.5 | 1.72 | 25 | ICD251290BK | |||||
| 35 | 6 | ICD35690 | 12 | 8.2 | 12.5 | 6.4 | 17 | 16.8 | 20 | 2.74 | 25 | ICD35690BK |
| 8 | ICD35890 | 8.4 | 17 | 18.8 | 3.04 | 25 | ICD35890BK | |||||
| 10 | ICD351090 | 10.5 | 19 | 20.8 | 3.12 | 25 | ICD351090BK | |||||
| 12 | ICD351290 | 13 | 21 | 21.8 | 3.26 | 25 | ICD351290BK | |||||
| 50 | 8 | ICD50890 | 14 | 9.8 | 14.5 | 8.4 | 20 | 19.8 | 28 | 4.68 | 25 | ICD50890BK |
| 10 | ICD501090 | 10.5 | 22 | 21.8 | 4.88 | 25 | ICD501090BK | |||||
| 12 | ICD501290 | 13 | 24 | 22.8 | 5.17 | 25 | ICD501290BK | |||||
| 16 | ICD501690 | 17 | 27 | 25.8 | 4.95 | 25 | ICD501690BK | |||||
| 70 | 8 | ICD70890 | 16 | 11.3 | 16.5 | 8.4 | 24 | 20.8 | 28 | 5.93 | 25 | ICD70890BK |
| 10 | ICD701090 | 10.5 | 24 | 22.8 | 6.55 | 25 | ICD701090BK | |||||
| 12 | ICD701290 | 13 | 24 | 23.8 | 6.56 | 25 | ICD701290BK | |||||
| 16 | ICD701690 | 17 | 29 | 26.8 | 6.31 | 25 | ICD701690BK | |||||
| 95 | 8 | ICD95890 | 18 | 13.5 | 19 | 8.4 | 28 | 22 | 35 | 8.5 | 25 | ICD95890BK |
| 10 | ICD951090 | 10.5 | 28 | 24 | 9.37 | 25 | ICD951090BK | |||||
| 12 | ICD951290 | 13 | 28 | 25 | 9.49 | 25 | ICD951290BK | |||||
| 16 | ICD951690 | 17 | 32 | 28 | 9.67 | 25 | ICD951690BK | |||||
| 120 | 10 | ICD1201090 | 20 | 15.5 | 21 | 10.5 | 32 | 25.5 | 35 | 12.09 | 25 | ICD1201090BK |
| 12 | ICD1201290 | 13 | 32 | 26.5 | 11.21 | 25 | ICD1201290BK | |||||
| 16 | ICD1201690 | 17 | 32 | 29.5 | 11.98 | 25 | ICD1201690BK | |||||
| 20 | ICD1202090 | 21 | 38 | 33.5 | 12.39 | 25 | ICD1202090BK | |||||
| 150 | 8 | ICD150890 | 22 | 17 | 23.5 | 8.4 | 34 | 26.8 | 35 | 12.66 | 10 | ICD150890BK |
| 10 | ICD1501090 | 10.5 | 34 | 26.8 | 14.08 | 10 | ICD1501090BK | |||||
| 12 | ICD1501290 | 13 | 34 | 27.8 | 14.3 | 10 | ICD1501290BK | |||||
| 16 | ICD1501690 | 17 | 34 | 30.8 | 14.32 | 10 | ICD1501690BK | |||||
| 20 | ICD1502090 | 21 | 34 | 34.8 | 15.18 | 10 | ICD1502090BK | |||||
| 185 | 8 | ICD185890 | 25 | 19 | 25.5 | 8.4 | 37 | 25.8 | 40 | 15.7 | 10 | ICD185890BK |
| 10 | ICD1851090 | 10.5 | 37 | 27.8 | 16.83 | 10 | ICD1851090BK | |||||
| 12 | ICD1851290 | 13 | 37 | 28.8 | 17.45 | 10 | ICD1851290BK | |||||
| 16 | ICD1851690 | 17 | 37 | 31.8 | 17.18 | 10 | ICD1851690BK | |||||
| 20 | ICD1852090 | 21 | 40 | 35.8 | 20.2 | 10 | ICD1852090BK | |||||
| 240 | 12 | ICD2401290 | 28 | 21.5 | 29 | 13 | 42 | 30.5 | 40 | 22.61 | 10 | ICD2401290BK |
| 16 | ICD2401690 | 17 | 42 | 33.5 | 24.46 | 10 | ICD2401690BK | |||||
| 20 | ICD2402090 | 21 | 42 | 37.5 | 25.59 | 10 | ICD2402090BK | |||||
| 300 | 12 | ICD3001290 | 32 | 24.5 | 32 | 13 | 48.5 | 32 | 50 | 29.08 | 5 | ICD3001290BK |
| 16 | ICD3001690 | 17 | 48.5 | 35 | 30.92 | 5 | ICD3001690BK | |||||
| 20 | ICD3002090 | 21 | 48.5 | 39 | 38.6 | 5 | ICD3002090BK |
